Construction Engine

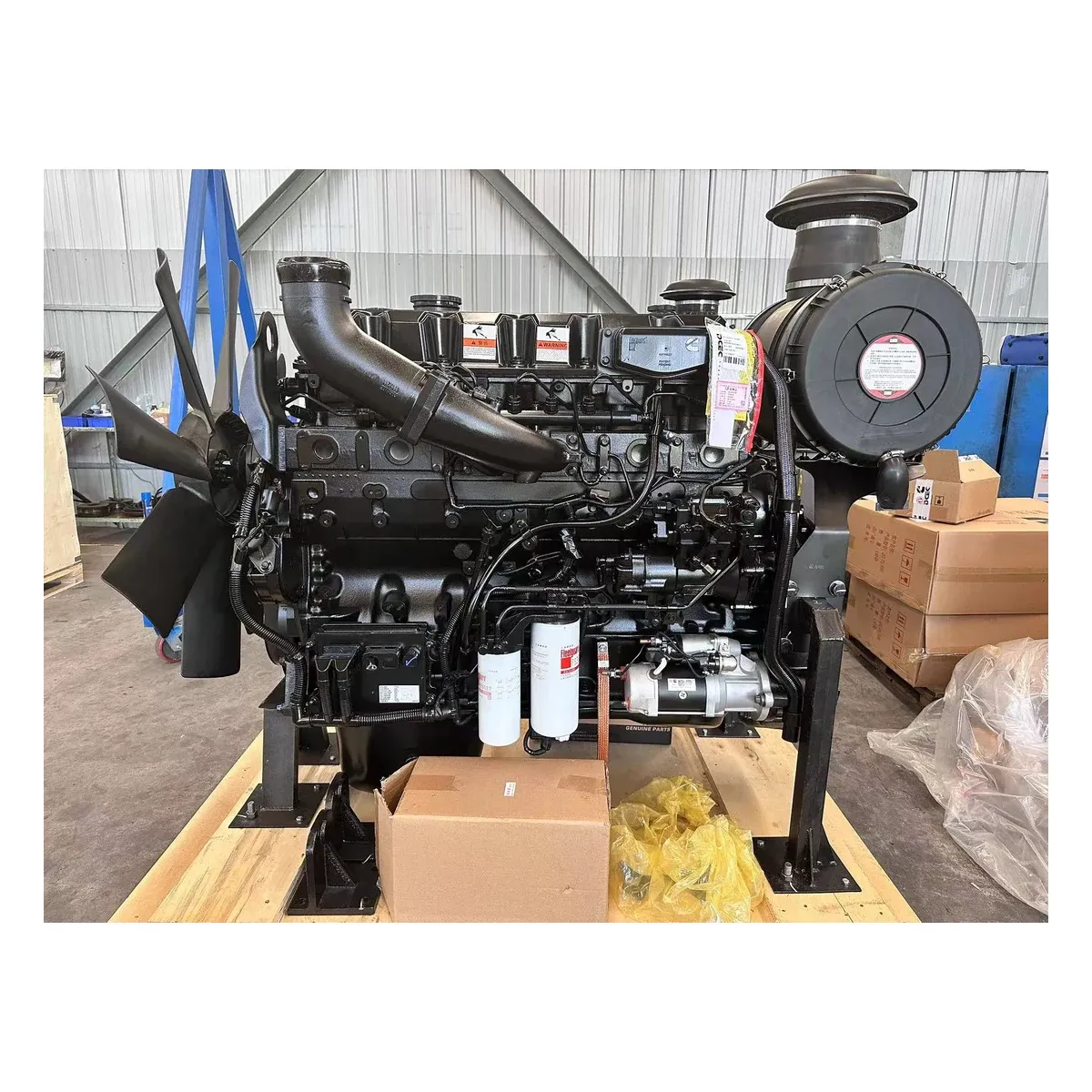

Cummins QSZ13 Industrial Diesel Engine (450–575 hp)
Cummins QSZ13 13 L 6-cylinder diesel engine, 450–575 hp (335–430 kW), 6 ratings for construction work. Each unit nameplate-verified.
Specifications
- Engine Model
- QSZ13-C450 ~ C575
- Displacement
- 13 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 335–430 kW (450–575 hp) @ 1900 rpm
- Aspiration
- Turbocharged & Charge Air cooled
- Applications
- Construction
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Cummins QSZ13 is a 13 L 6-cylinder Cummins diesel engine supplied in 6 factory ratings from 450 hp (335 kW) to 575 hp (430 kW). Every rating listed on this page is a complete engine for construction duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every QSZ13 rating, including the 13 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: QSZ13 Ratings
Each entry in this section is one rating of the Cummins QSZ13. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
QSZ13-C450
QSZ13-C450 — rated 335 kW (450 hp) at 1900 rpm; peak torque 2200 N·m at None rpm; emissions Euro III.
QSZ13-C475
QSZ13-C475 — rated 354 kW (475 hp) at 1900 rpm; peak torque 2200 N·m at None rpm; emissions Euro III.
QSZ13-C500
QSZ13-C500 — rated 372 kW (500 hp) at 1900 rpm; peak torque 2750 N·m at None rpm; emissions Euro III.
QSZ13-C525
QSZ13-C525 — rated 390 kW (525 hp) at 1900 rpm; peak torque 2580 N·m at None rpm; emissions Euro III.
QSZ13-C550
QSZ13-C550 — rated 410 kW (550 hp) at 1900 rpm; peak torque 2650 N·m at None rpm; emissions Euro III.
QSZ13-C575
QSZ13-C575 — rated 430 kW (575 hp) at 1900 rpm; peak torque 2750 N·m at None rpm; emissions Euro III.
Applications
QSZ13 engines in this family are normally specified for construction work.
Construction duty: the ratings with the higher peak torque are the ones normally quoted for loaders, dozers and haul trucks, where the engine has to hold torque under a sudden increase in load at low ground speed.
Duty cycle: the lower ratings in the same family are used where the duty cycle is closer to continuous and the installed package limits the cooling or the coupling that can be fitted.
Emissions: the ratings listed here carry Euro III. Where a market imposes a different standard, confirm the tier before ordering, because the same model number can be built to more than one tier.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example QSZ13-C575), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your QSZ13 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the QSZ13?
The 6 ratings listed on this page run from 450 hp (335 kW) to 575 hp (430 kW).
What displacement and cylinder count does the QSZ13 use?
Every rating in this family shares the same 13 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between QSZ13-C550 and QSZ13-C575?
QSZ13-C550 is rated 410 kW (550 hp) at 1900 rpm with peak torque of 2650 N·m, while QSZ13-C575 is rated 430 kW (575 hp) at 1900 rpm with 2750 N·m. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
Which emissions tiers are available for the QSZ13?
The ratings on this page are listed as Euro III. Emissions tier is part of the rating definition, so state the tier your market requires when you request a quotation.
How is a QSZ13 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
