Marine Engine

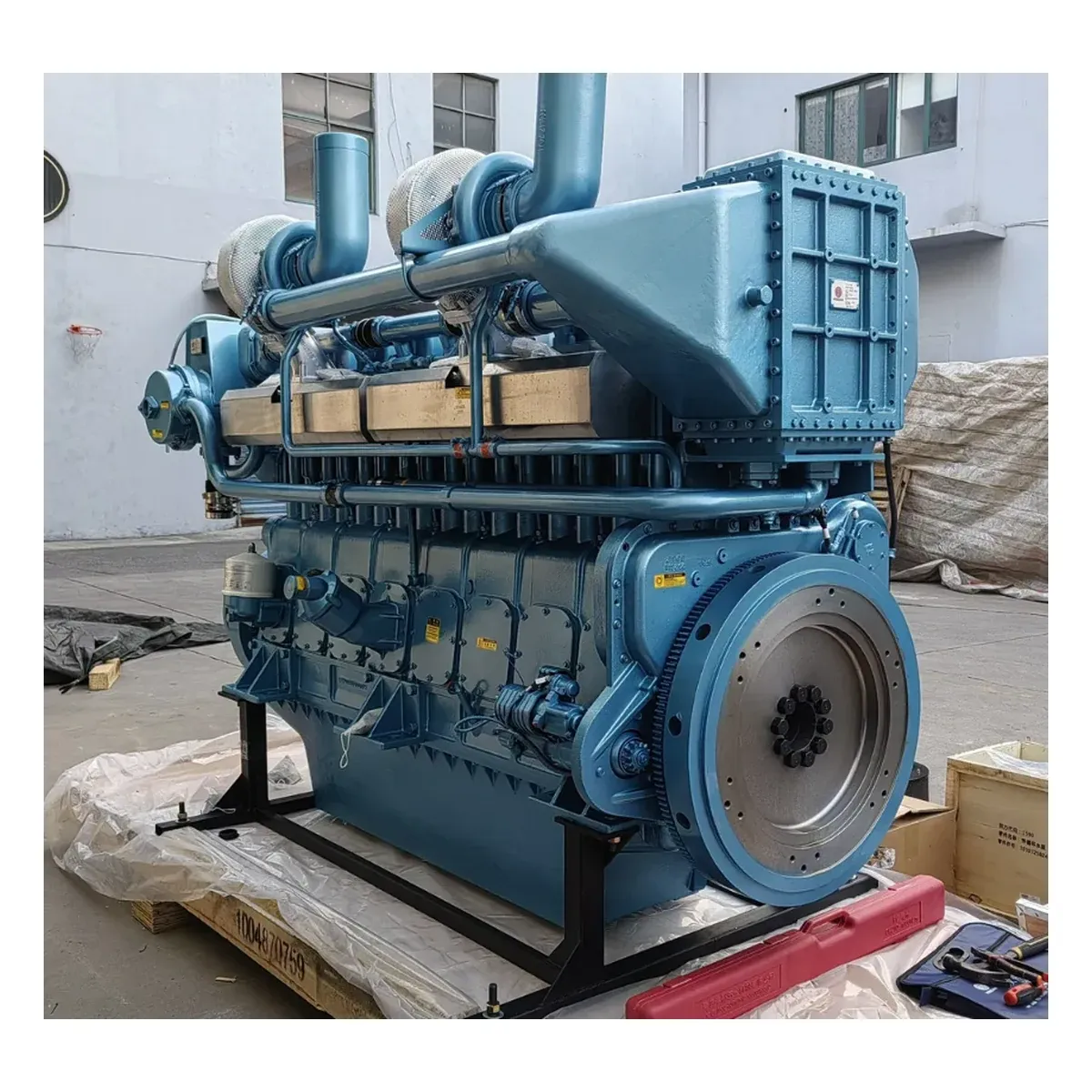

Weichai 8170Z Marine Diesel Engine (591–986 hp)
Weichai 8170Z 36.32 L 8-cylinder diesel engine, 591–986 hp (441–735 kW), 18 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- 8170Z
- Displacement
- 36.32 L
- Cylinders & Configuration
- Inline 8, 4-cycle
- Rated Power Range
- 441–735 kW (591–986 hp) @ 1000–1500 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai 8170Z is a 36.32 L 8-cylinder Weichai diesel engine supplied in 18 factory ratings from 591 hp (441 kW) to 986 hp (735 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every 8170Z rating, including the 36.32 L displacement and the inline 8-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: 8170Z Ratings
Each entry in this section is one rating of the Weichai 8170Z. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
8170ZC600-1
8170ZC600-1 — rated 441 kW (591 hp) at 1000 rpm.
8170ZCD441-1
8170ZCD441-1 — rated 441 kW (591 hp) at 1000 rpm.
8170ZCD4411
8170ZCD4411 — rated 441 kW (591 hp) at 1000 rpm.
8170ZC650NG2
8170ZC650NG2 — rated 478 kW (641 hp) at 1200 rpm.
8170ZCD4901
8170ZCD4901 — rated 490 kW (657 hp) at 1000 rpm.
8170ZC7202
8170ZC7202 — rated 530 kW (711 hp) at 1200 rpm.
8170ZC720-2
8170ZC720-2 — rated 530 kW (711 hp) at 1200 rpm.
8170ZC735NG3
8170ZC735NG3 — rated 540 kW (724 hp) at 1350 rpm.
8170ZCD570-1
8170ZCD570-1 — rated 570 kW (764 hp) at 1000 rpm.
8170ZC818-3
8170ZC818-3 — rated 601 kW (806 hp) at 1350 rpm.
8170ZC818NG5
8170ZC818NG5 — rated 601 kW (806 hp) at 1500 rpm.
8170ZC900-3
8170ZC900-3 — rated 661 kW (886 hp) at 1350 rpm.
8170ZC900-5
8170ZC900-5 — rated 661 kW (886 hp) at 1500 rpm.
8170ZC9003
8170ZC9003 — rated 661 kW (886 hp) at 1350 rpm.
8170ZC9005
8170ZC9005 — rated 661 kW (886 hp) at 1500 rpm.
8170ZC900NG5
8170ZC900NG5 — rated 661 kW (886 hp) at 1500 rpm.
8170ZC10005
8170ZC10005 — rated 735 kW (986 hp) at 1500 rpm.
8170ZC1000-5
8170ZC1000-5 — rated 735 kW (986 hp) at 1500 rpm.
Applications
8170Z engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example 8170ZC1000-5), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your 8170Z specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the 8170Z?
The 18 ratings listed on this page run from 591 hp (441 kW) to 986 hp (735 kW), at governed speeds between 1000 and 1500 rpm.
What displacement and cylinder count does the 8170Z use?
Every rating in this family shares the same 36.32 L displacement and inline 8-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between 8170ZC10005 and 8170ZC1000-5?
8170ZC10005 is rated 735 kW (986 hp) at 1500 rpm, while 8170ZC1000-5 is rated 735 kW (986 hp) at 1500 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a 8170Z rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
