Marine Engine

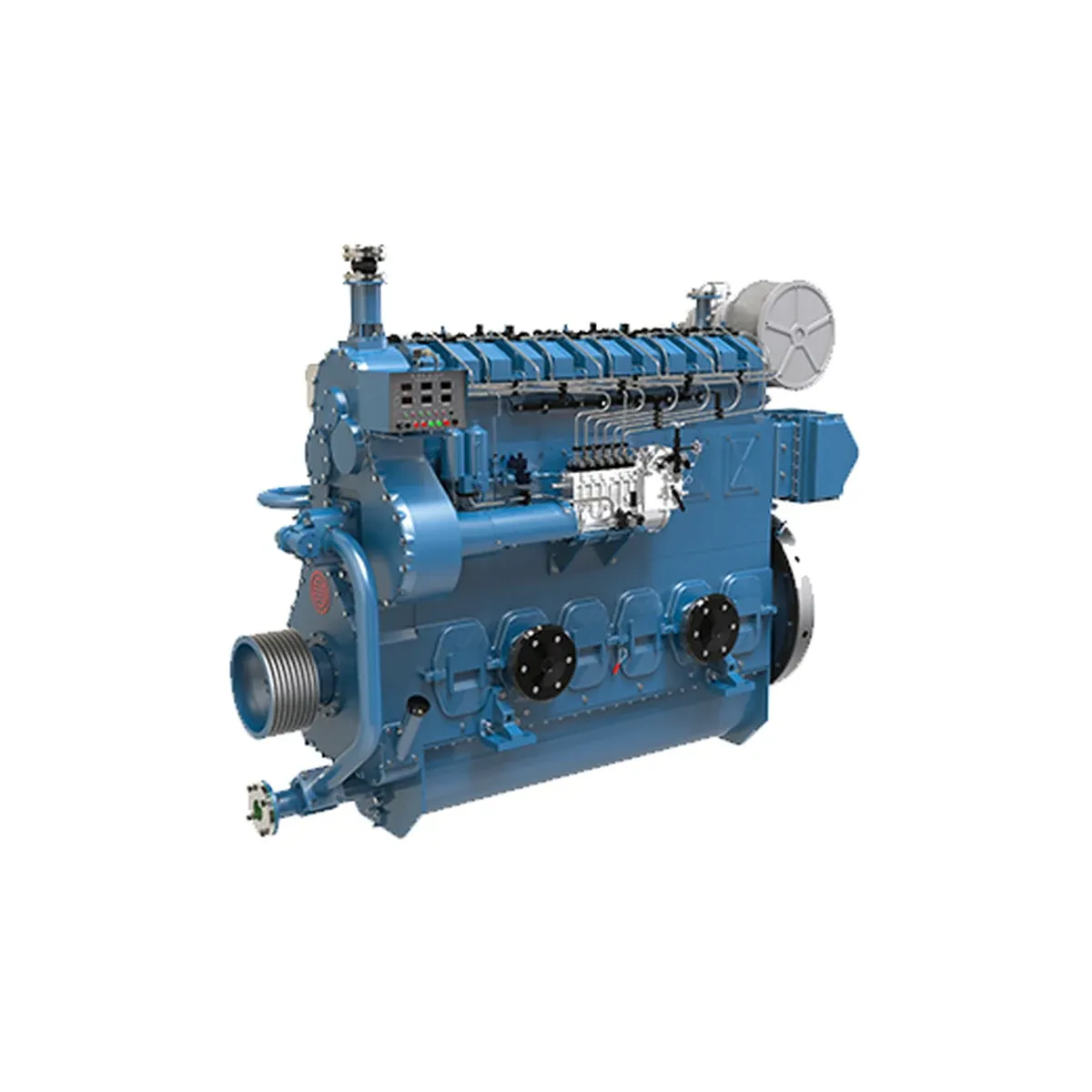

Weichai CW200 Marine Diesel Engine (603–2360 hp)
Weichai CW200 50.89 L 6-cylinder diesel engine, 603–2360 hp (450–1760 kW), 25 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- CW200
- Displacement
- 50.89 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 450–1760 kW (603–2360 hp) @ 750–1000 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai CW200 is a 50.89 L 6-cylinder Weichai diesel engine supplied in 25 factory ratings from 603 hp (450 kW) to 2360 hp (1760 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every CW200 rating, including the 50.89 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: CW200 Ratings
Each entry in this section is one rating of the Weichai CW200. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
CW6200ZC-7
CW6200ZC-7 — rated 450 kW (603 hp) at 750 rpm.
CW6200ZC
CW6200ZC — rated 600 kW (805 hp) at 1000 rpm.
CW6200ZC-357
CW6200ZC-357 — rated 600 kW (805 hp) at 750 rpm.
CW6200ZC-360
CW6200ZC-360 — rated 648 kW (869 hp) at 900 rpm.
XCW6200ZC
XCW6200ZC — rated 698 kW (936 hp) at 1000 rpm.
CW6200ZC-363
CW6200ZC-363 — rated 698 kW (936 hp) at 1000 rpm.
XCW6200ZC-10
XCW6200ZC-10 — rated 810 kW (1086 hp) at 1000 rpm.
CW6200ZC-369
CW6200ZC-369 — rated 810 kW (1086 hp) at 1000 rpm.
XCW6200ZC-9
XCW6200ZC-9 — rated 840 kW (1126 hp) at 1000 rpm.
XCW8200ZC-12
XCW8200ZC-12 — rated 890 kW (1193 hp) at 1000 rpm.
CW6200ZC-373
CW6200ZC-373 — rated 900 kW (1207 hp) at 1000 rpm.
XCW8200ZC
XCW8200ZC — rated 928 kW (1244 hp) at 1000 rpm.
CW8200ZC-349
CW8200ZC-349 — rated 928 kW (1244 hp) at 1000 rpm.
XCW8200ZC-1
XCW8200ZC-1 — rated 960 kW (1287 hp) at 1000 rpm.
XCW8200ZC-13
XCW8200ZC-13 — rated 992 kW (1330 hp) at 1000 rpm.
XCW8200ZC-10
XCW8200ZC-10 — rated 1030 kW (1381 hp) at 1000 rpm.
CW12V200ZC2
CW12V200ZC2 — rated 1080 kW (1448 hp) at 900 rpm.
XCW8200ZC2
XCW8200ZC2 — rated 1104 kW (1480 hp) at 1000 rpm.
CW8200ZC-355
CW8200ZC-355 — rated 1104 kW (1480 hp) at 1000 rpm.
CW12V200ZC
CW12V200ZC — rated 1200 kW (1609 hp) at 1000 rpm.
XCW12V200ZC-4
XCW12V200ZC-4 — rated 1296 kW (1738 hp) at None rpm.
XCW12V200ZC
XCW12V200ZC — rated 1392 kW (1867 hp) at 1000 rpm.
XCW12V200ZC-1
XCW12V200ZC-1 — rated 1440 kW (1931 hp) at 1000 rpm.
CW16V200ZC6
CW16V200ZC6 — rated 1600 kW (2146 hp) at 1000 rpm.
CW16V200ZC
CW16V200ZC — rated 1760 kW (2360 hp) at 1000 rpm.
Applications
CW200 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example CW16V200ZC), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your CW200 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the CW200?
The 25 ratings listed on this page run from 603 hp (450 kW) to 2360 hp (1760 kW), at governed speeds between 750 and 1000 rpm.
What displacement and cylinder count does the CW200 use?
Every rating in this family shares the same 50.89 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between CW16V200ZC6 and CW16V200ZC?
CW16V200ZC6 is rated 1600 kW (2146 hp) at 1000 rpm, while CW16V200ZC is rated 1760 kW (2360 hp) at 1000 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a CW200 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
