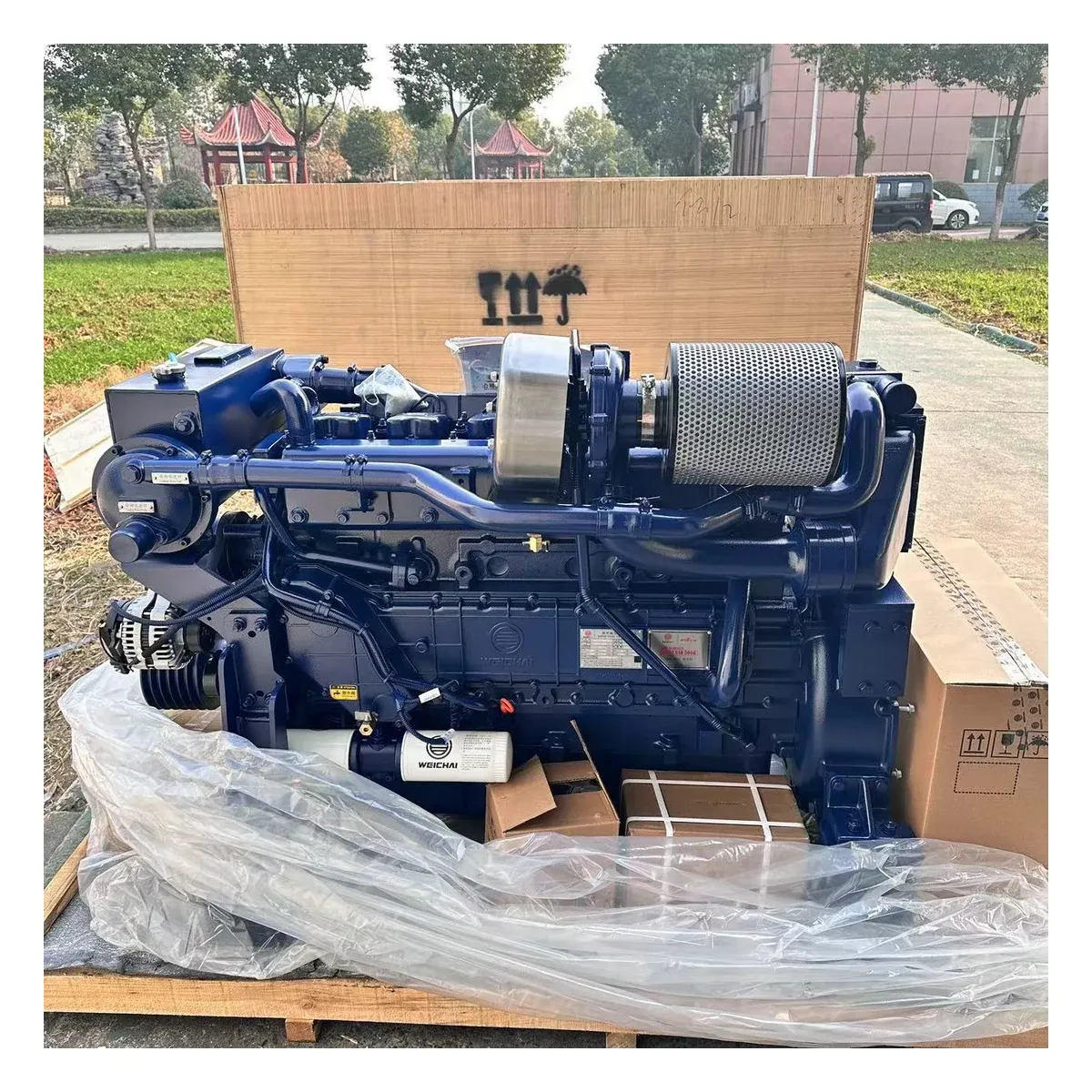

Weichai WD10 Marine Diesel Engine (168–322 hp)
Weichai WD10 9.726 L 6-cylinder diesel engine, 168–322 hp (125–240 kW), 13 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- WD10
- Displacement
- 9.726 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 125–240 kW (168–322 hp) @ 1500–2100 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai WD10 is a 9.726 L 6-cylinder Weichai diesel engine supplied in 13 factory ratings from 168 hp (125 kW) to 322 hp (240 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every WD10 rating, including the 9.726 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: WD10 Ratings
Each entry in this section is one rating of the Weichai WD10. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
WD10C170-15
WD10C170-15 — rated 125 kW (168 hp) at 1500 rpm.
WD10C190-15
WD10C190-15 — rated 140 kW (188 hp) at 1500 rpm.
WD10C190-18
WD10C190-18 — rated 140 kW (188 hp) at 1800 rpm.
WD10C218-15
WD10C218-15 — rated 160 kW (215 hp) at 1500 rpm.
WD10C240-15
WD10C240-15 — rated 176 kW (236 hp) at 1500 rpm.
WD10C240-18
WD10C240-18 — rated 176 kW (236 hp) at 1800 rpm.
WD10C258-15
WD10C258-15 — rated 190 kW (255 hp) at 1500 rpm.
WD10C278-15
WD10C278-15 — rated 205 kW (275 hp) at 1500 rpm.
WD10C278-18
WD10C278-18 — rated 205 kW (275 hp) at 1800 rpm.
WD10C278-21
WD10C278-21 — rated 205 kW (275 hp) at 2100 rpm.
WD10C300-21
WD10C300-21 — rated 220 kW (295 hp) at 2100 rpm.
WD10C312-18
WD10C312-18 — rated 230 kW (308 hp) at 1800 rpm.
WD10C326-21
WD10C326-21 — rated 240 kW (322 hp) at 2100 rpm.
Applications
WD10 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example WD10C326-21), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your WD10 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the WD10?
The 13 ratings listed on this page run from 168 hp (125 kW) to 322 hp (240 kW), at governed speeds between 1500 and 2100 rpm.
What displacement and cylinder count does the WD10 use?
Every rating in this family shares the same 9.726 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between WD10C312-18 and WD10C326-21?
WD10C312-18 is rated 230 kW (308 hp) at 1800 rpm, while WD10C326-21 is rated 240 kW (322 hp) at 2100 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a WD10 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
