Marine Engine

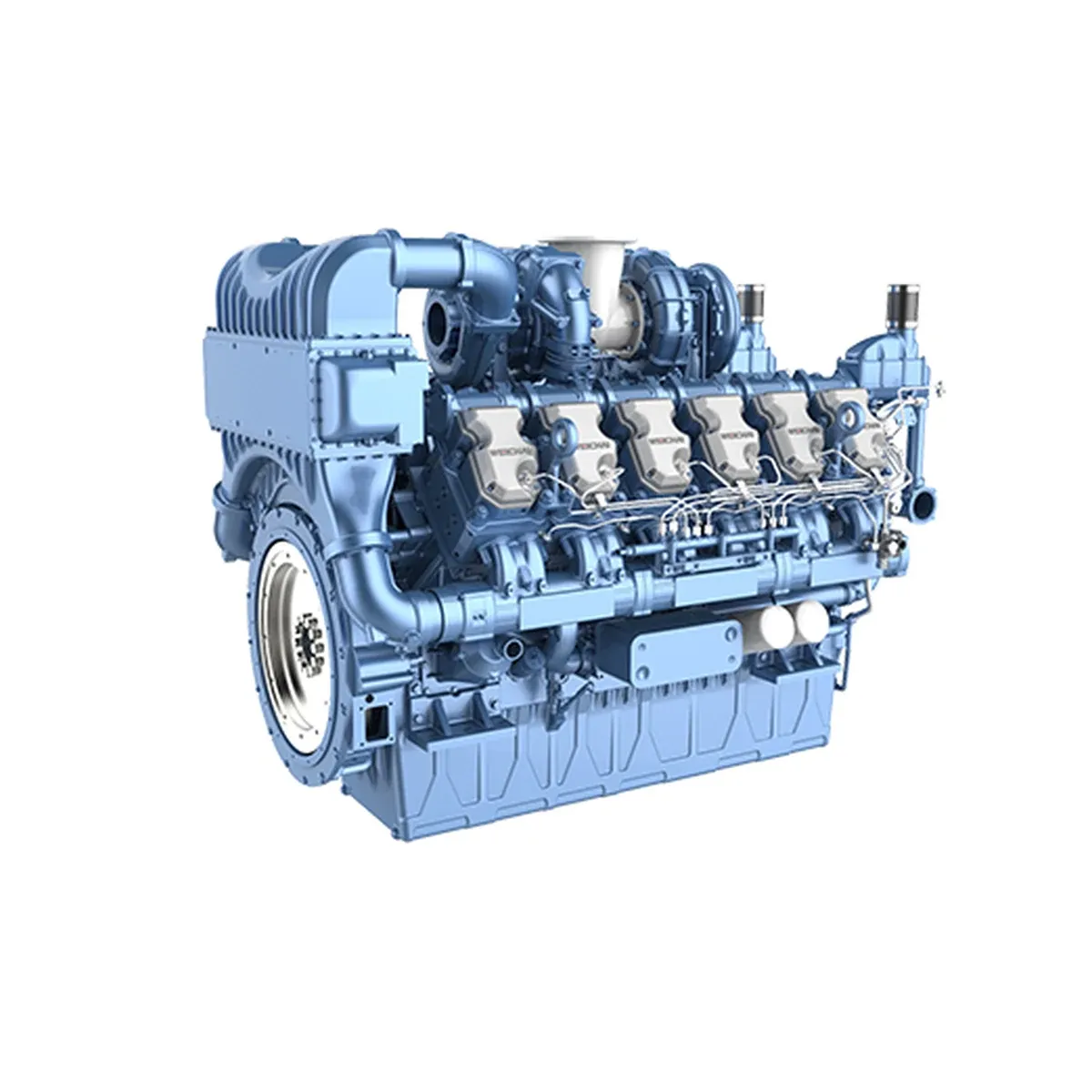

Weichai WH17 Marine Diesel Engine (641–1944 hp)
Weichai WH17 30.22 L 6-cylinder diesel engine, 641–1944 hp (478–1450 kW), 28 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- WH17
- Displacement
- 30.22 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 478–1450 kW (641–1944 hp) @ 1000–1500 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai WH17 is a 30.22 L 6-cylinder Weichai diesel engine supplied in 28 factory ratings from 641 hp (478 kW) to 1944 hp (1450 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every WH17 rating, including the 30.22 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: WH17 Ratings
Each entry in this section is one rating of the Weichai WH17. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
6WH17C650-1
6WH17C650-1 — rated 478 kW (641 hp) at 1000 rpm.
6WH17C680-2
6WH17C680-2 — rated 500 kW (670 hp) at 1200 rpm.
5WH17C700-1
5WH17C700-1 — rated 515 kW (691 hp) at 1000 rpm.
6WH17C750-2
6WH17C750-2 — rated 551 kW (739 hp) at 1200 rpm.
6WH17CD6605
6WH17CD6605 — rated 600 kW (805 hp) at 1500 rpm.
6WH17C850-2
6WH17C850-2 — rated 625 kW (838 hp) at 1200 rpm.
6WH17C900-3
6WH17C900-3 — rated 661 kW (886 hp) at 1350 rpm.
6WH17C900-5
6WH17C900-5 — rated 661 kW (886 hp) at 1500 rpm.
8WH17C900-1
8WH17C900-1 — rated 662 kW (888 hp) at 1000 rpm.
8WH17C952-1
8WH17C952-1 — rated 700 kW (939 hp) at 1000 rpm.
6WH17C1000-5
6WH17C1000-5 — rated 735 kW (986 hp) at 1500 rpm.
8WH17C1000-2
8WH17C1000-2 — rated 735 kW (986 hp) at 1200 rpm.
6WH17CD8095
6WH17CD8095 — rated 735 kW (986 hp) at 1500 rpm.
8WH17C11562
8WH17C11562 — rated 850 kW (1140 hp) at 1200 rpm.
8WH17C12003
8WH17C12003 — rated 882 kW (1183 hp) at 1350 rpm.
12WH17C1224-2
12WH17C1224-2 — rated 900 kW (1207 hp) at 1200 rpm.
8WH17C1251-5
8WH17C1251-5 — rated 920 kW (1234 hp) at 1500 rpm.
8WH17C13605
8WH17C13605 — rated 1000 kW (1341 hp) at 1500 rpm.
12WH17C1360-2
12WH17C1360-2 — rated 1000 kW (1341 hp) at 1200 rpm.
12WH17C14962
12WH17C14962 — rated 1100 kW (1475 hp) at 1200 rpm.
12WH17CD1210-2
12WH17CD1210-2 — rated 1100 kW (1475 hp) at 1200 rpm.
12WH17CD1265-5
12WH17CD1265-5 — rated 1150 kW (1542 hp) at 1500 rpm.
12WH17C16322
12WH17C16322 — rated 1200 kW (1609 hp) at 1200 rpm.
12WH17C1700-5
12WH17C1700-5 — rated 1250 kW (1676 hp) at 1500 rpm.
12WH17C1836-5
12WH17C1836-5 — rated 1350 kW (1810 hp) at 1500 rpm.
12WH17CD1485-5
12WH17CD1485-5 — rated 1350 kW (1810 hp) at 1500 rpm.
12WH17C19725
12WH17C19725 — rated 1450 kW (1944 hp) at 1500 rpm.
12WH17CD15955
12WH17CD15955 — rated 1450 kW (1944 hp) at 1500 rpm.
Applications
WH17 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example 12WH17CD15955), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your WH17 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the WH17?
The 28 ratings listed on this page run from 641 hp (478 kW) to 1944 hp (1450 kW), at governed speeds between 1000 and 1500 rpm.
What displacement and cylinder count does the WH17 use?
Every rating in this family shares the same 30.22 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between 12WH17C19725 and 12WH17CD15955?
12WH17C19725 is rated 1450 kW (1944 hp) at 1500 rpm, while 12WH17CD15955 is rated 1450 kW (1944 hp) at 1500 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a WH17 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
