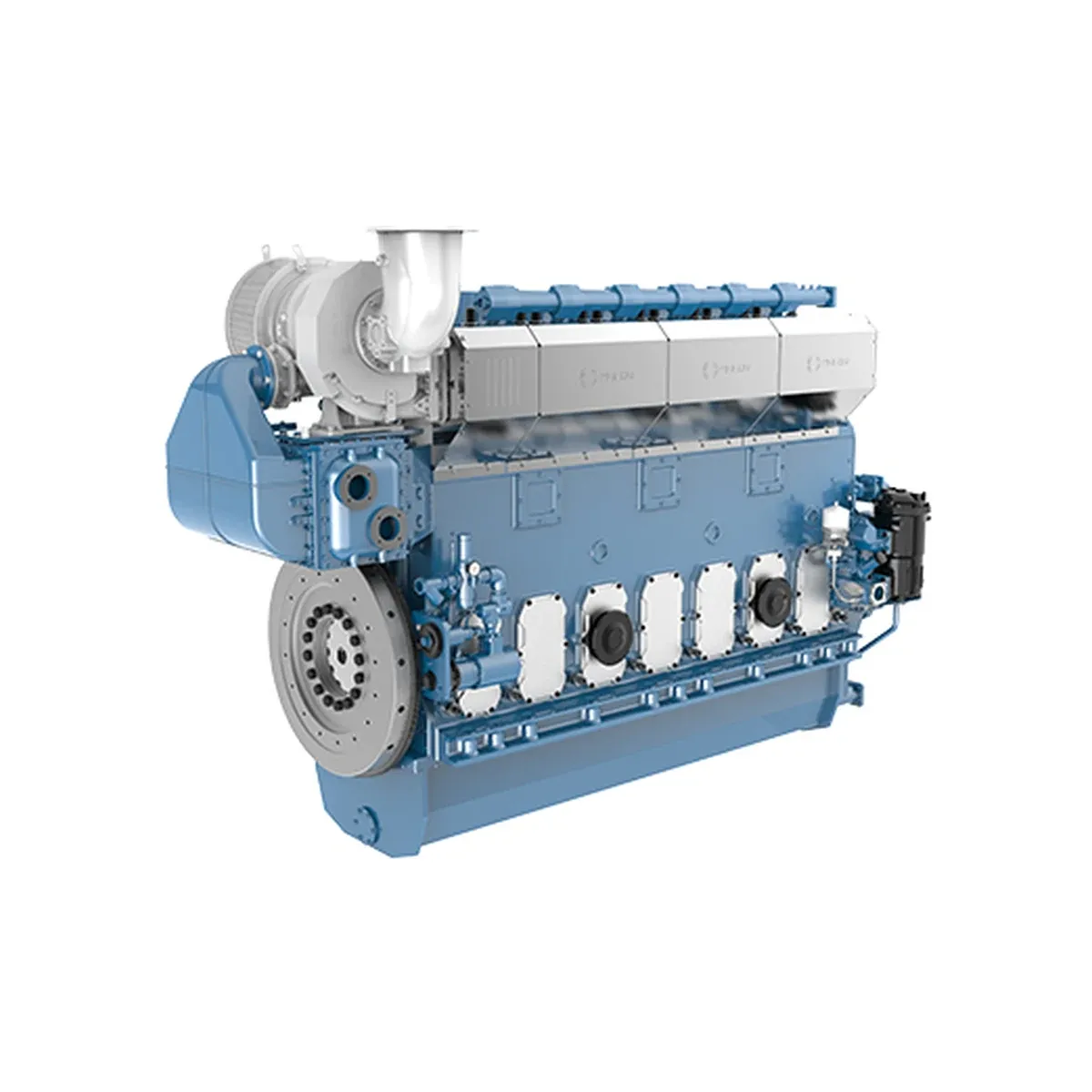

Weichai WH25 Marine Diesel Engine (1676–3594 hp)
Weichai WH25 97.19 L 6-cylinder diesel engine, 1676–3594 hp (1250–2680 kW), 25 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- WH25
- Displacement
- 97.19 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 1250–2680 kW (1676–3594 hp) @ 650–1000 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai WH25 is a 97.19 L 6-cylinder Weichai diesel engine supplied in 25 factory ratings from 1676 hp (1250 kW) to 3594 hp (2680 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every WH25 rating, including the 97.19 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: WH25 Ratings
Each entry in this section is one rating of the Weichai WH25. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
6WH25LC17006.5
6WH25LC17006.5 — rated 1250 kW (1676 hp) at 650 rpm.
6WH25LCD12967.2
6WH25LCD12967.2 — rated 1296 kW (1738 hp) at 720 rpm.
6WH25LC2000-7.5
6WH25LC2000-7.5 — rated 1470 kW (1971 hp) at 750 rpm.
6WH25LC2000-1
6WH25LC2000-1 — rated 1470 kW (1971 hp) at 1000 rpm.
6WH25LCD147-07.5
6WH25LCD147-07.5 — rated 1470 kW (1971 hp) at 750 rpm.
6WH25LC22049
6WH25LC22049 — rated 1620 kW (2172 hp) at None rpm.
6WH25LCD1620-9
6WH25LCD1620-9 — rated 1620 kW (2172 hp) at 900 rpm.
6WH25LC2448-9
6WH25LC2448-9 — rated 1800 kW (2414 hp) at 900 rpm.
6WH25LC2448-1
6WH25LC2448-1 — rated 1800 kW (2414 hp) at 1000 rpm.
6WH25LCD1800-1
6WH25LCD1800-1 — rated 1800 kW (2414 hp) at 1000 rpm.
6WH25LCD180-09
6WH25LCD180-09 — rated 1800 kW (2414 hp) at 900 rpm.
8WH25LCD1800-7.5
8WH25LCD1800-7.5 — rated 1800 kW (2414 hp) at 750 rpm.
8WH25LCD1800-7.2
8WH25LCD1800-7.2 — rated 1800 kW (2414 hp) at 720 rpm.
8WH25LC25007.5
8WH25LC25007.5 — rated 1838 kW (2465 hp) at 750 rpm.
8WH25LC2720-7.5
8WH25LC2720-7.5 — rated 2000 kW (2682 hp) at 750 rpm.
8WH25LCD2000-7.5
8WH25LCD2000-7.5 — rated 2000 kW (2682 hp) at 750 rpm.
6WH25LC2734-1
6WH25LC2734-1 — rated 2010 kW (2695 hp) at 1000 rpm.
8WH25LCD2200-1
8WH25LCD2200-1 — rated 2200 kW (2950 hp) at 1000 rpm.
8WH25LCD2200-9
8WH25LCD2200-9 — rated 2200 kW (2950 hp) at None rpm.
8WH25LC30001
8WH25LC30001 — rated 2205 kW (2957 hp) at 1000 rpm.
8WH25LC3000-9
8WH25LC3000-9 — rated 2207 kW (2960 hp) at None rpm.
8WH25LC3265-1
8WH25LC3265-1 — rated 2400 kW (3218 hp) at 1000 rpm.
8WH25LC3300-9
8WH25LC3300-9 — rated 2427 kW (3255 hp) at None rpm.
8WH25LCD24501
8WH25LCD24501 — rated 2450 kW (3285 hp) at 1000 rpm.
8WH25LC3645-1
8WH25LC3645-1 — rated 2680 kW (3594 hp) at 1000 rpm.
Applications
WH25 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example 8WH25LC3645-1), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your WH25 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the WH25?
The 25 ratings listed on this page run from 1676 hp (1250 kW) to 3594 hp (2680 kW), at governed speeds between 650 and 1000 rpm.
What displacement and cylinder count does the WH25 use?
Every rating in this family shares the same 97.19 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between 8WH25LCD24501 and 8WH25LC3645-1?
8WH25LCD24501 is rated 2450 kW (3285 hp) at 1000 rpm, while 8WH25LC3645-1 is rated 2680 kW (3594 hp) at 1000 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a WH25 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
