Marine Engine

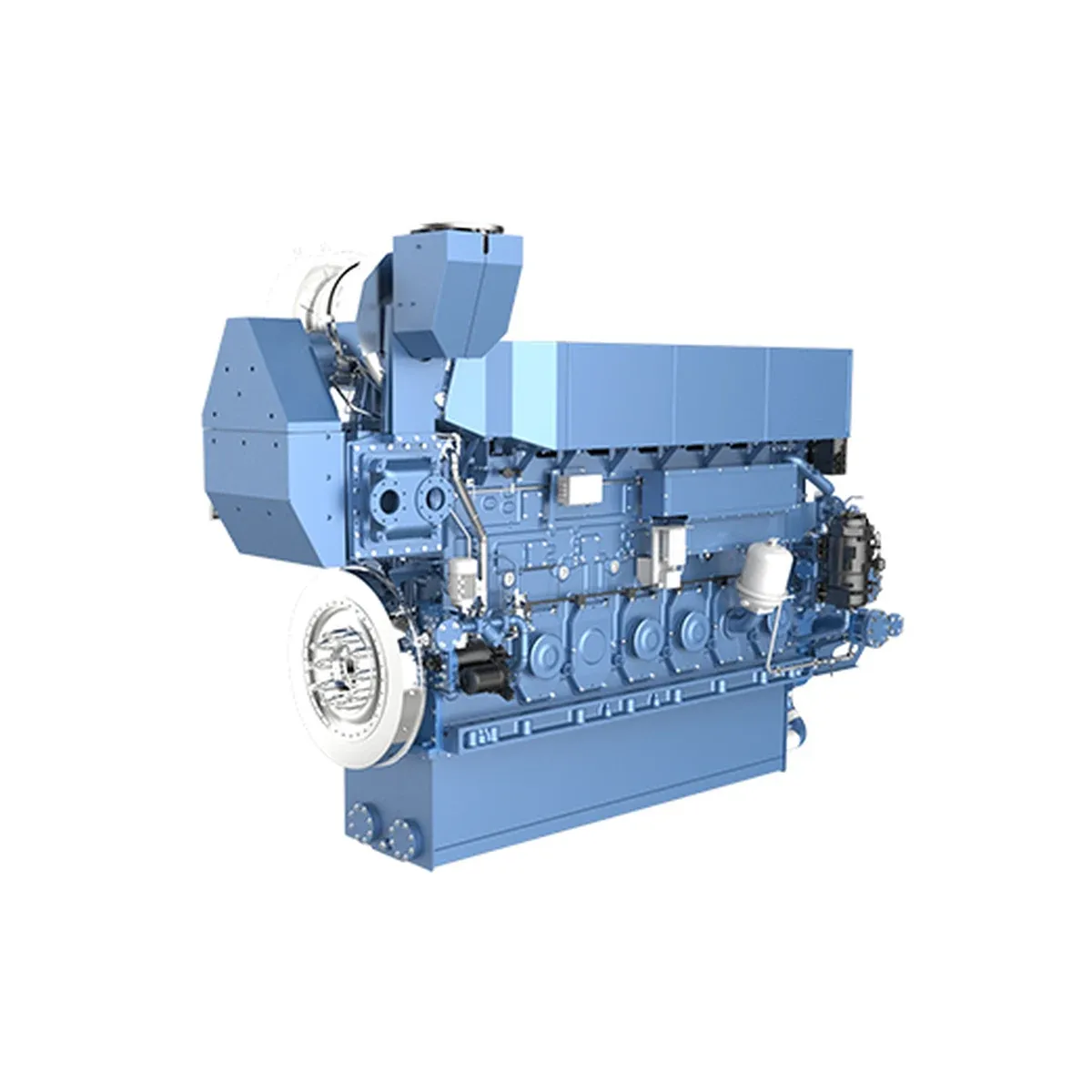

Weichai WH28 Marine Diesel Engine (2682–3218 hp)
Weichai WH28 151.5 L 6-cylinder diesel engine, 2682–3218 hp (2000–2400 kW), 12 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- WH28
- Displacement
- 151.5 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 2000–2400 kW (2682–3218 hp) @ 720–800 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai WH28 is a 151.5 L 6-cylinder Weichai diesel engine supplied in 12 factory ratings from 2682 hp (2000 kW) to 3218 hp (2400 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every WH28 rating, including the 151.5 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: WH28 Ratings
Each entry in this section is one rating of the Weichai WH28. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
6WH28C2720DF-7.2
6WH28C2720DF-7.2 — rated 2000 kW (2682 hp) at 720 rpm.
6WH28C2774DF-7.2
6WH28C2774DF-7.2 — rated 2040 kW (2736 hp) at 720 rpm.
6WH28C2938DF-7.2
6WH28C2938DF-7.2 — rated 2160 kW (2897 hp) at 720 rpm.
6WH28C2938DF-7.5
6WH28C2938DF-7.5 — rated 2160 kW (2897 hp) at 750 rpm.
6WH28C2938DF-8
6WH28C2938DF-8 — rated 2160 kW (2897 hp) at 800 rpm.
6WH28C2992DF-7.5
6WH28C2992DF-7.5 — rated 2200 kW (2950 hp) at 750 rpm.
6WH28C2992DF-8
6WH28C2992DF-8 — rated 2200 kW (2950 hp) at 800 rpm.
6WH28C3000DF-7.5
6WH28C3000DF-7.5 — rated 2206 kW (2958 hp) at 750 rpm.
6WH28C3046DF-7.5
6WH28C3046DF-7.5 — rated 2240 kW (3004 hp) at 750 rpm.
6WH28C3046DF-8
6WH28C3046DF-8 — rated 2240 kW (3004 hp) at 800 rpm.
6WH28C3060DF-7.5
6WH28C3060DF-7.5 — rated 2250 kW (3017 hp) at 750 rpm.
6WHZ8C3264DF-8
6WHZ8C3264DF-8 — rated 2400 kW (3218 hp) at 800 rpm.
Applications
WH28 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example 6WHZ8C3264DF-8), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your WH28 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the WH28?
The 12 ratings listed on this page run from 2682 hp (2000 kW) to 3218 hp (2400 kW), at governed speeds between 720 and 800 rpm.
What displacement and cylinder count does the WH28 use?
Every rating in this family shares the same 151.5 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between 6WH28C3060DF-7.5 and 6WHZ8C3264DF-8?
6WH28C3060DF-7.5 is rated 2250 kW (3017 hp) at 750 rpm, while 6WHZ8C3264DF-8 is rated 2400 kW (3218 hp) at 800 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a WH28 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
