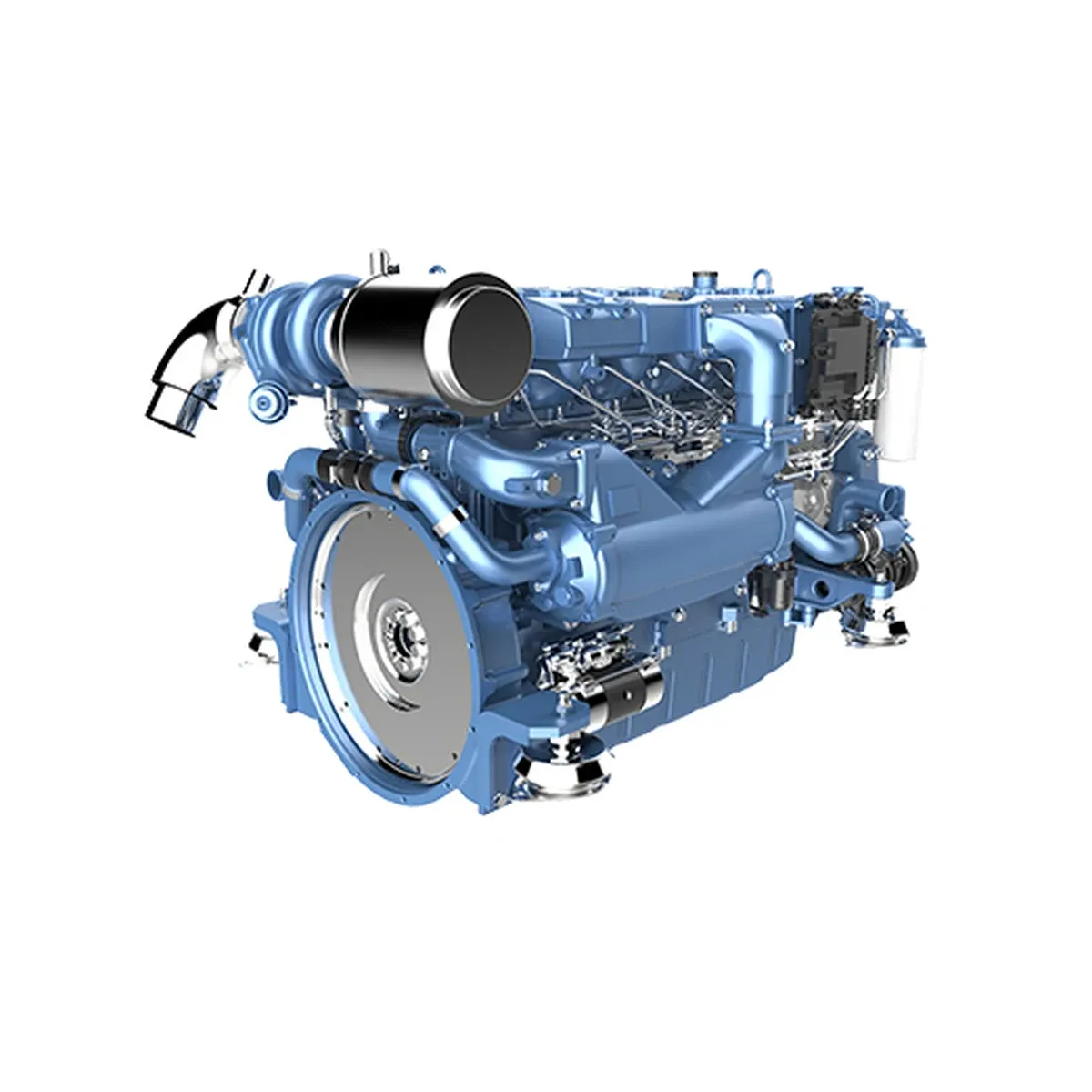

Weichai WP10 Marine Diesel Engine (180–389 hp)
Weichai WP10 9.726 L 6-cylinder diesel engine, 180–389 hp (134–290 kW), 34 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- WP10
- Displacement
- 9.726 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 134–290 kW (180–389 hp) @ 1500–2200 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai WP10 is a 9.726 L 6-cylinder Weichai diesel engine supplied in 34 factory ratings from 180 hp (134 kW) to 389 hp (290 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every WP10 rating, including the 9.726 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: WP10 Ratings
Each entry in this section is one rating of the Weichai WP10. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
WP10C182-15NG
WP10C182-15NG — rated 134 kW (180 hp) at 1500 rpm.
WP10C21015NG
WP10C21015NG — rated 155 kW (208 hp) at 1500 rpm.
WP10C231-18NG
WP10C231-18NG — rated 170 kW (228 hp) at 1800 rpm.
WP10C23515NG
WP10C23515NG — rated 173 kW (232 hp) at 1500 rpm.
WP10C24818NG
WP10C24818NG — rated 182 kW (244 hp) at 1800 rpm.
WP10CD200E200
WP10CD200E200 — rated 182 kW (244 hp) at 1500 rpm.
WP10CD200E201
WP10CD200E201 — rated 182 kW (244 hp) at 1800 rpm.
WP10CD200E220
WP10CD200E220 — rated 182 kW (244 hp) at 1500 rpm.
WP10CD200E221
WP10CD200E221 — rated 182 kW (244 hp) at 1800 rpm.
WP10C278-15E220
WP10C278-15E220 — rated 205 kW (275 hp) at 1500 rpm.
WP10C278-18E220
WP10C278-18E220 — rated 205 kW (275 hp) at 1800 rpm.
WP10C278-21E220
WP10C278-21E220 — rated 205 kW (275 hp) at 2100 rpm.
WP10C28020NG
WP10C28020NG — rated 206 kW (276 hp) at 2000 rpm.
WP10CD238E200
WP10CD238E200 — rated 216 kW (290 hp) at 1500 rpm.
WP10CD238E201
WP10CD238E201 — rated 216 kW (290 hp) at 1800 rpm.
WP10CD238E220
WP10CD238E220 — rated 216 kW (290 hp) at 1500 rpm.
WP10CD238E221
WP10CD238E221 — rated 216 kW (290 hp) at 1800 rpm.
WP10C300-15E220
WP10C300-15E220 — rated 220 kW (295 hp) at 1500 rpm.
WP10C300-18E220
WP10C300-18E220 — rated 220 kW (295 hp) at 1800 rpm.
WP10C300-21E220
WP10C300-21E220 — rated 220 kW (295 hp) at 2100 rpm.
WP10C313-21
WP10C313-21 — rated 230 kW (308 hp) at 2100 rpm.
WP10C327-15E220
WP10C327-15E220 — rated 240 kW (322 hp) at 1500 rpm.
WP10C327-18E220
WP10C327-18E220 — rated 240 kW (322 hp) at 1800 rpm.
WP10C326-21E220
WP10C326-21E220 — rated 240 kW (322 hp) at 2100 rpm.
WP10CD264E200
WP10CD264E200 — rated 240 kW (322 hp) at 1500 rpm.
WP10CD264E201
WP10CD264E201 — rated 240 kW (322 hp) at 1800 rpm.
WP10CD264E220
WP10CD264E220 — rated 240 kW (322 hp) at 1500 rpm.
WP10CD264E221
WP10CD264E221 — rated 240 kW (322 hp) at 1800 rpm.
WP10C350-18
WP10C350-18 — rated 257 kW (345 hp) at 1800 rpm.
WP10C350-18E220
WP10C350-18E220 — rated 257 kW (345 hp) at 1800 rpm.
WP10C375-21
WP10C375-21 — rated 275 kW (369 hp) at 2100 rpm.
WP10C375-21E220
WP10C375-21E220 — rated 275 kW (369 hp) at 2100 rpm.
WP10C395-22
WP10C395-22 — rated 290 kW (389 hp) at 2200 rpm.
WP10C395-22E220
WP10C395-22E220 — rated 290 kW (389 hp) at 2200 rpm.
Applications
WP10 engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example WP10C395-22E220), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your WP10 specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the WP10?
The 34 ratings listed on this page run from 180 hp (134 kW) to 389 hp (290 kW), at governed speeds between 1500 and 2200 rpm.
What displacement and cylinder count does the WP10 use?
Every rating in this family shares the same 9.726 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between WP10C395-22 and WP10C395-22E220?
WP10C395-22 is rated 290 kW (389 hp) at 2200 rpm, while WP10C395-22E220 is rated 290 kW (389 hp) at 2200 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a WP10 rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
