Marine Engine

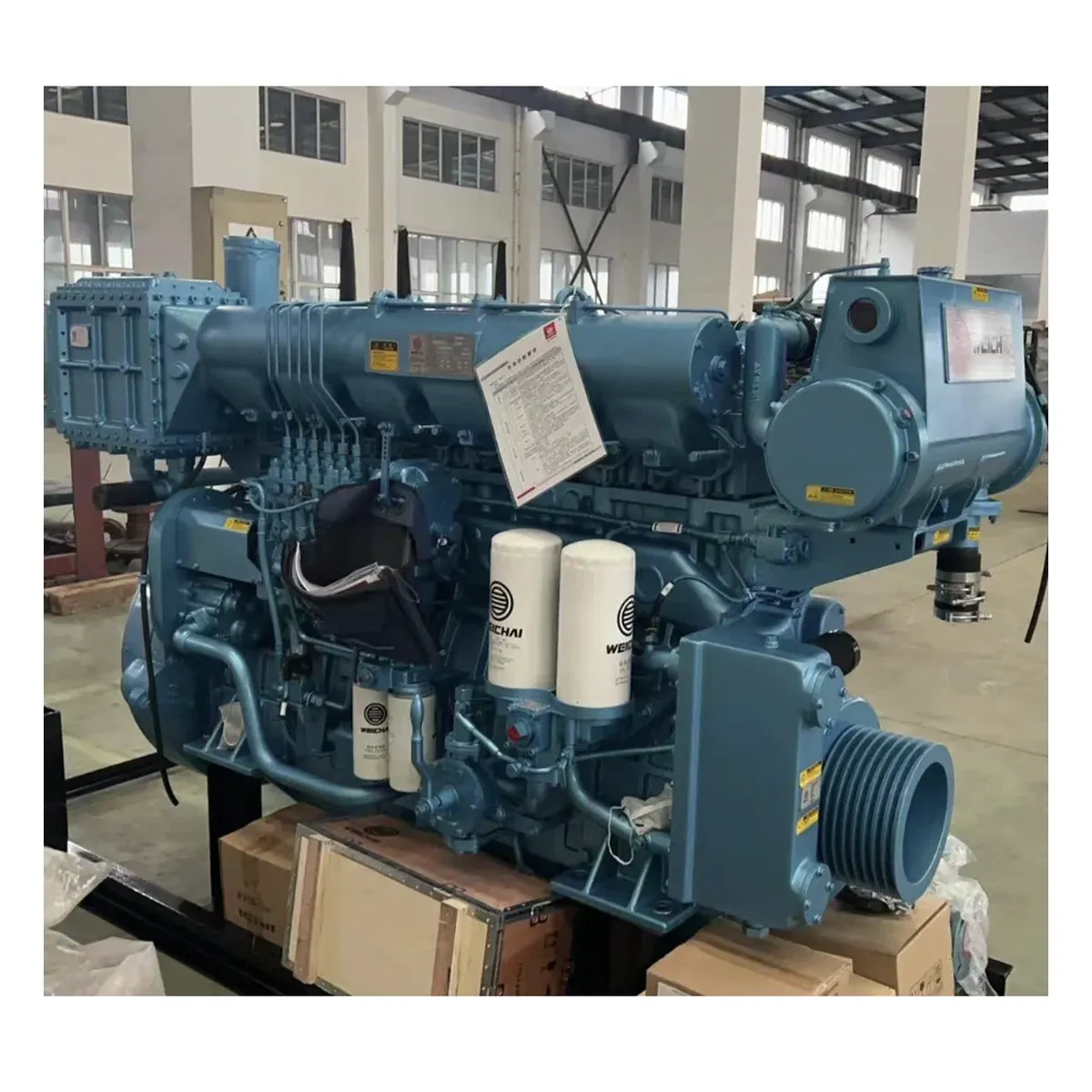

Weichai X6170Z Marine Diesel Engine (295–868 hp)
Weichai X6170Z 27.24 L 6-cylinder diesel engine, 295–868 hp (220–647 kW), 40 ratings for marine work. Each unit nameplate-verified.
Specifications
- Engine Model
- X6170Z
- Displacement
- 27.24 L
- Cylinders & Configuration
- Inline 6, 4-cycle
- Rated Power Range
- 220–647 kW (295–868 hp) @ 1000–1500 rpm
- Aspiration
- Turbocharged Aftercooled
- Applications
- Marine
- Documentation
- Nameplate verification + load-test record per serial number
Overview
The Weichai X6170Z is a 27.24 L 6-cylinder Weichai diesel engine supplied in 40 factory ratings from 295 hp (220 kW) to 868 hp (647 kW). Every rating listed on this page is a complete engine for marine duty, not a generator set, and each unit ships with its serial number recorded against the specification sheet that applies to it.
Ratings in this family differ in rated speed, peak torque and emissions tier rather than in displacement or cylinder count, so the choice between them is a duty-matching question. The specifications panel and the per-rating entries on this page are generated from the same source data, so a rating quoted here can be matched directly against a delivery document.
Specifications
The specifications panel lists the family-level values that are common to every X6170Z rating, including the 27.24 L displacement and the inline 6-cylinder layout. Ratings that share displacement and cylinder count but differ in output are listed individually in the model selection section.
Model Selection: X6170Z Ratings
Each entry in this section is one rating of the Weichai X6170Z. The rated power is the output at the stated speed; the peak torque figure is the value the rating develops at the lower speed shown, which is what normally decides whether a rating suits a given machine. Each rating carries a stable anchor, so a single rating can be linked or quoted directly.
X6170ZC300NG1
X6170ZC300NG1 — rated 220 kW (295 hp) at 1000 rpm.
X6170ZC350DF1
X6170ZC350DF1 — rated 257 kW (345 hp) at 1000 rpm.
X6170ZC350-1
X6170ZC350-1 — rated 258 kW (346 hp) at 1000 rpm.
X6170ZC350NG1
X6170ZC350NG1 — rated 258 kW (346 hp) at 1000 rpm.
X6170ZCD280-1
X6170ZCD280-1 — rated 280 kW (375 hp) at 1000 rpm.
X6170ZC4081
X6170ZC4081 — rated 300 kW (402 hp) at 1000 rpm.
X6170ZC408NG2
X6170ZC408NG2 — rated 300 kW (402 hp) at 1200 rpm.
X6170ZC408DF1
X6170ZC408DF1 — rated 300 kW (402 hp) at 1000 rpm.
X6170ZC450-1
X6170ZC450-1 — rated 330 kW (443 hp) at 1000 rpm.
X6170ZC450NG2
X6170ZC450NG2 — rated 330 kW (443 hp) at 1200 rpm.
X6170ZC450DF1
X6170ZC450DF1 — rated 330 kW (443 hp) at 1000 rpm.
X6170ZCD330-1
X6170ZCD330-1 — rated 330 kW (443 hp) at 1000 rpm.
X6170ZC4802
X6170ZC4802 — rated 353 kW (473 hp) at 1200 rpm.
X6170ZC480DF2
X6170ZC480DF2 — rated 353 kW (473 hp) at 1200 rpm.
X6170ZC490NG2
X6170ZC490NG2 — rated 360 kW (483 hp) at 1200 rpm.
X6170ZC540-2
X6170ZC540-2 — rated 397 kW (532 hp) at 1200 rpm.
X6170ZC540DF1
X6170ZC540DF1 — rated 397 kW (532 hp) at 1000 rpm.
X6170ZC540DF2
X6170ZC540DF2 — rated 397 kW (532 hp) at 1200 rpm.
X6170ZC550NG3
X6170ZC550NG3 — rated 405 kW (543 hp) at 1350 rpm.
X6170ZC5803
X6170ZC5803 — rated 426 kW (571 hp) at 1350 rpm.
X6170ZC580DF3
X6170ZC580DF3 — rated 426 kW (571 hp) at 1350 rpm.
X6170ZCD4401
X6170ZCD4401 — rated 440 kW (590 hp) at 1000 rpm.
X6170ZC612NG5
X6170ZC612NG5 — rated 450 kW (603 hp) at 1500 rpm.
X6170ZC620-2
X6170ZC620-2 — rated 456 kW (611 hp) at 1200 rpm.
X6170ZC6205
X6170ZC6205 — rated 456 kW (611 hp) at 1500 rpm.
X6170ZC620DF2
X6170ZC620DF2 — rated 456 kW (611 hp) at 1200 rpm.
X6170ZC620DF5
X6170ZC620DF5 — rated 456 kW (611 hp) at 1500 rpm.
X6170ZC650-2
X6170ZC650-2 — rated 478 kW (641 hp) at 1200 rpm.
X6170ZC650DF2
X6170ZC650DF2 — rated 478 kW (641 hp) at 1200 rpm.
X6170ZC6803
X6170ZC6803 — rated 500 kW (670 hp) at 1350 rpm.
X6170ZC680DF3
X6170ZC680DF3 — rated 500 kW (670 hp) at 1350 rpm.
X6170ZC735DF3
X6170ZC735DF3 — rated 540 kW (724 hp) at 1350 rpm.
X6170ZC756-5
X6170ZC756-5 — rated 556 kW (746 hp) at 1500 rpm.
X6170ZC756DF5
X6170ZC756DF5 — rated 556 kW (746 hp) at 1500 rpm.
X6170ZC8185
X6170ZC8185 — rated 601 kW (806 hp) at 1500 rpm.
X6170ZC818-5
X6170ZC818-5 — rated 601 kW (806 hp) at 1500 rpm.
X6170ZC818DF5
X6170ZC818DF5 — rated 601 kW (806 hp) at 1500 rpm.
X6170ZC835-5
X6170ZC835-5 — rated 612 kW (821 hp) at 1500 rpm.
X6170ZC880-5
X6170ZC880-5 — rated 647 kW (868 hp) at 1500 rpm.
X6170ZC8805
X6170ZC8805 — rated 647 kW (868 hp) at 1500 rpm.
Applications
X6170Z engines in this family are normally specified for marine work.
Marine: ratings are quoted against the propulsion or auxiliary duty required, with the gearbox ratio and the duty classification taken into account.
Verification, Documentation and Ordering
Each engine is offered with nameplate verification + load-test record per serial number. That means the model and rating printed on the engine nameplate can be checked against the record issued for that serial number before shipment, which is the point most buyers of re-rated or re-exported engines want covered.
To receive a quotation, send the exact rating from the matrix above (for example X6170ZC8805), the machine or application it will drive, the quantity, and the destination port. If the rating you need is not listed, send the model and the required output and we will confirm whether it belongs to this family or to a neighbouring one.
Buyer tip: Send your X6170Z specification, quantity and destination port for a verified quotation and lead time.
Frequently Asked Questions
What is the power range of the X6170Z?
The 40 ratings listed on this page run from 295 hp (220 kW) to 868 hp (647 kW), at governed speeds between 1000 and 1500 rpm.
What displacement and cylinder count does the X6170Z use?
Every rating in this family shares the same 27.24 L displacement and inline 6-cylinder, 4-cycle configuration. Ratings differ in output, rated speed and emissions tier rather than in the base engine.
What is the difference between X6170ZC880-5 and X6170ZC8805?
X6170ZC880-5 is rated 647 kW (868 hp) at 1500 rpm, while X6170ZC8805 is rated 647 kW (868 hp) at 1500 rpm. They use the same base engine; the higher rating is the one to specify when the driven load needs the extra torque at the lower speed.
How is a X6170Z rating ordered?
Send the exact rating shown in the model selection table, the application it will drive, the quantity and the destination port. The engine is then quoted against that rating and confirmed against its nameplate and load-test record.
